LAND ROVER DEFENDER 90 AIRBAG MAN INTELLIRIDE AIRBAG KIT. PART DA9200

PRODUCT DESCRIPTION

AIRBAG MAN INTELLIRIDE AIRBAG KIT

Height Range Automatic Mode         Front    Rear

Ride Height up to Raised Height         40mm    40mm

Ride Height down to Access Height   -80mm    -80mm

Height Range Manual Mode

Maximum Height from Ride Height      50mm    50mm

Minimum Height from Ride Height     -100mm    -100mm

Why Intelliride ECAS?

This front and rear axle full air suspension kit incorporates on-board air control which is a fully automatic Electronically Controlled Air Suspension (ECAS) System. When fitted, the system provides comfort while maintaining a programmed ride height irrespective of the load. Multiple vehicle heights are available at the push of a button.

The on-board system has automatic load levelling at each height which continuously monitors inputs and component performance as a means of increasing safety and durability. The on-board system recognises and responds accordingly to potholes, cross-articulation and extended turns. This intelligence prevents unnecessary activity and air consumption, it even recognises unachievable heights, assisting in the prevention of possible damage above or below the vehicle.

Features

> Automatic 4 corner ride heigh control catering for all loads

> 3 pre-set heights - high, drive & low mode

> Fully adjustable via easy to use hand held control

>  Front to back levelling

> Raise for clearance

> Lower for storage and access

> Inputs available for safety reset to ride height

> Manual mode

> Horizon levelling feature option

> OEM grade components for reliable performance

> High volume air springs for optimal ride quality & carrying capacity

Benefits

> Easy installation

> Excellent ride quality

> Headlights point in the right direction

> Adjustable levelling control

> Prevents bottoming out

> Stabilise body roll

> Reduces tyre wear

> Lowers maintenance costs

> Safer load carrying

> Better braking

> Improved steering & handling

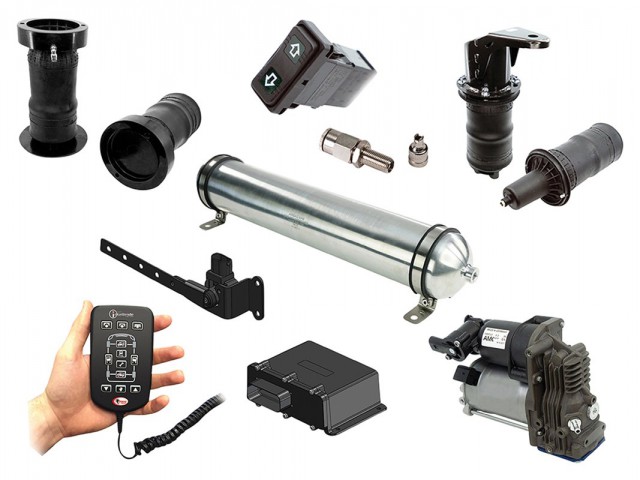

Core Components

> Rear Firestone air springs - heavy-duty rolling sleeve air springs.

> Front Dunlop air springs - heavy-duty rolling sleeve air springs includes shock relocation brackets

> AMK air compressor - 12 volt. Max 150 psi working pressure, high quality German built compressor.

> 1 Gallon seamless aluminium air tank - SAE J10 APPROVED, lightweight & no corrosion. Max. working pressure 200psi. Pressure tested to 1,000psi. 3 x ¼” NPT ports (including drain port). Multi-position low profile bracket set

> Hand held controller - 9m lead

> ECU & valve block

> Vehicle specific air supply mounting brackets

> Rocker switch & height sensors

> 6mm high quality nylon tubing

> Quick fit push to connect air fittings

> Easy to use electrical connections

> Sealed relay & harness

> Hardware

> Step by step instructions

> Operators manual

COMPATIBILITY

LAND ROVER DEFENDER 90

MANUFACTURER PART NO
